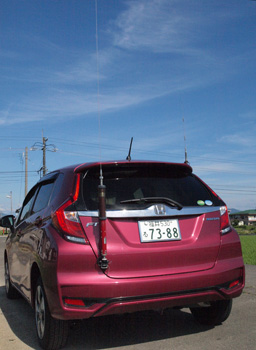

Installation of Mobile Station
| Antennas | |
|---|---|
|
Tarheel Antennas (USA) Little Tarheel II |
Continuous coverage from 3.5 to 54MHz using Screwdriver system Tuned positions are saved by AMERITRON SDC-102 Screwdriver Controller |
| Maldol APEX AX-50 |
144/430 MHz Whoip antenna Gain 5.0 dBi (430MHz) |
| Transceiver | |
| YAESU FT-857D |
1.9～50 MHz CW、AM、SSB 50W |
Setting of the Equipments
|
|
||

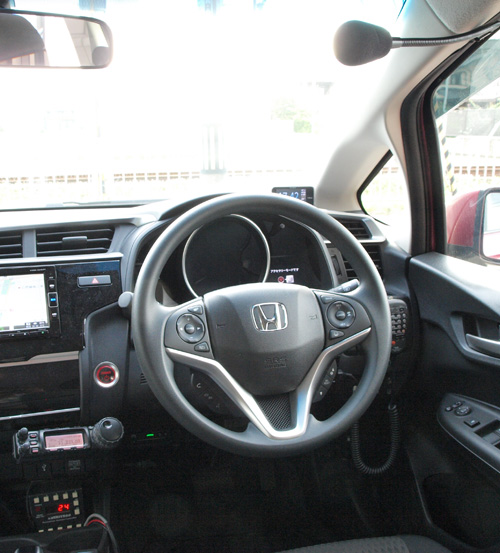

| Remote controller of FT-857D and Screwdriver Controller | |||
|
 |
||

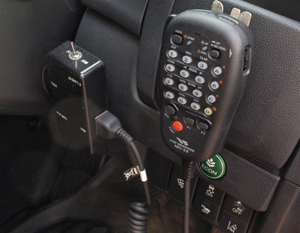

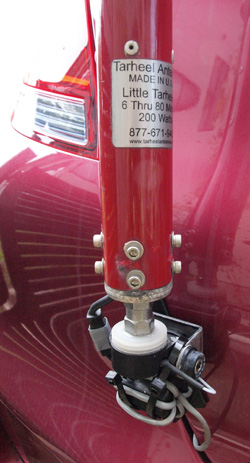

| Feeding point of Little Tharheel II | PTT(transmit/receive switch） | Switching box (Home-brew) between Hand Microphone with DTMF system and Fixed Microphone | |
